A fiber optic pigtail is a short fiber cable with a factory-terminated connector on one end and bare fiber on the other, used to splice into your home fiber network for reliable, low-loss connections.

What Is a Fiber Optic Pigtail?

A fiber optic pigtail is a short length of optical fiber, typically 0.5 to 2 meters long, with a factory-installed connector on one end and bare fiber on the other end . The connector end is polished and tested to ensure low insertion loss and high return loss, while the bare fiber end is designed to be fusion or mechanically spliced to the incoming fiber cable in your home network . This allows for a permanent, low-loss connection to patch panels, optical distribution frames (ODFs), or terminal boxes.

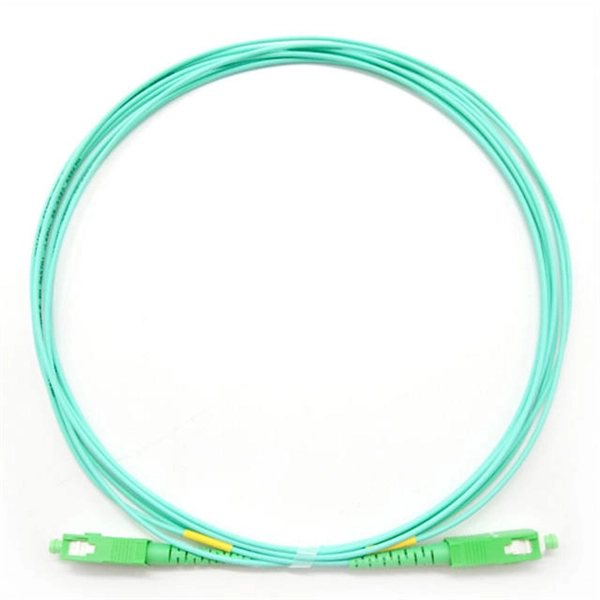

Pigtail vs Patch Cord

While a patch cord has connectors on both ends and is used to connect devices like switches, routers, or patch panels, a pigtail is specifically for splicing into a fiber cable . In home installations, pigtails are ideal for creating permanent links from the incoming fiber line to your network equipment, whereas patch cords are used for flexible, short-term connections between devices.

Connector Types and Fiber Modes

Common connector types for home fiber pigtails include LC, SC, ST, and E2000 . You also need to choose between single-mode (SMF) and multimode (MMF) fibers depending on your network requirements:

• Single-mode (SMF): Best for long-distance or high-speed home fiber connections, often using ITU-T G.652 or G.657 standards .
• Multimode (MMF): Suitable for shorter distances, such as within a home or small building, with OM3 or OM4 fibers supporting 10G speeds up to 300–400 meters .

Installation and Usage

To use a pigtail in a home network:

1. Splice the bare fiber end to the incoming fiber cable using fusion or mechanical splicing.
2. Secure the splice in a splice tray or terminal box.
3. Connect the factory-terminated end to your patch panel or directly to network equipment using an adapter. This method ensures factory-grade connector quality, reduces installation time, and provides a reliable, low-loss connection compared to field-terminated connectors .

Practical Tips for Home Use

• Match connector types to your equipment (e.g., LC connectors for LC ports).
• Choose the right fiber mode for your distance and speed requirements.
• Label pigtails to simplify future maintenance or upgrades.
• Keep extra pigtails on hand for repairs or network expansion . Using fiber optic pigtails in a home network ensures high performance, future-proofing, and easier maintenance, making them an essential component for any residential fiber deployment.
