Fiber optic cables are connected to an optical distribution box by carefully routing, securing, and terminating the fibers using adapters, splices, and proper cable management to ensure reliable network performance.

Overview of Fiber Optic Distribution Boxes

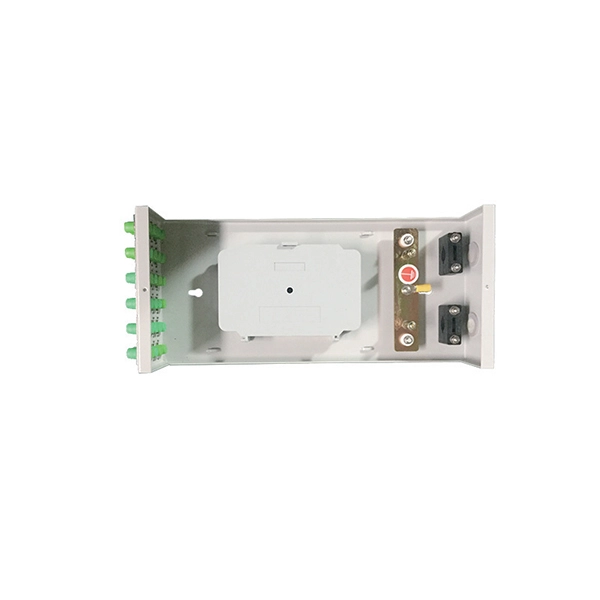

A fiber optic distribution box (FDB), also called a termination or terminal box, serves as a central hub for terminating, splicing, and distributing fiber optic cables. It protects delicate fibers, organizes connections, and allows distribution to network devices such as switches, routers, or customer premises equipment (CPE) in both indoor and outdoor environments . Distribution boxes can be wall-mounted, rack-mounted, or outdoor dome-style, depending on installation requirements .

Key Components

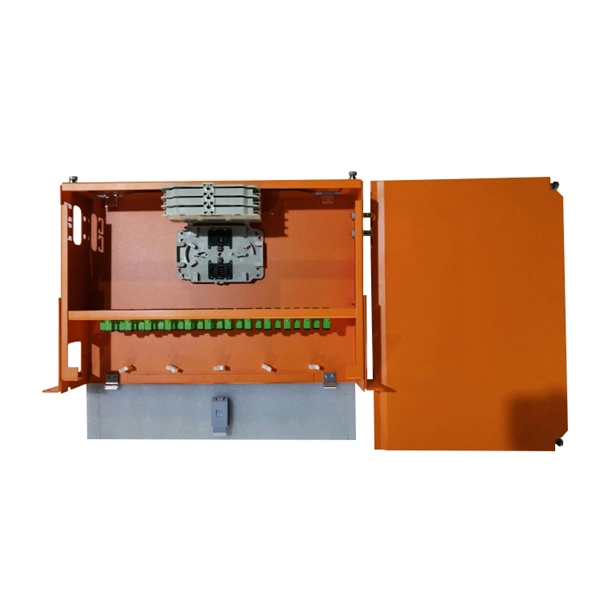

• Splice Trays: Securely hold fiber splices and protect them from damage .

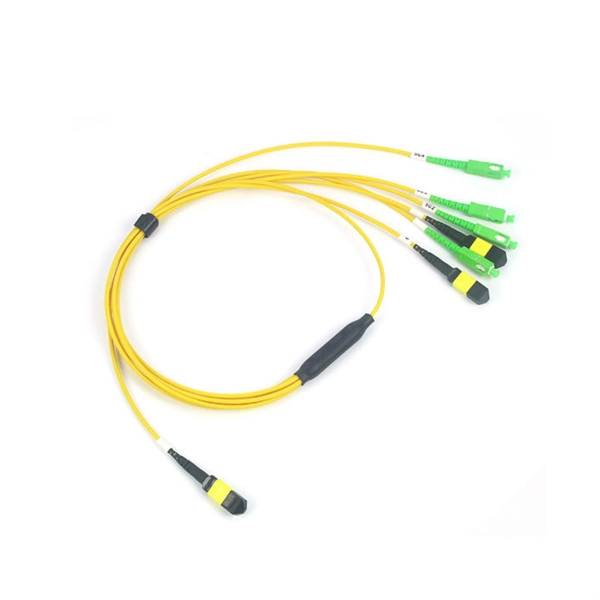

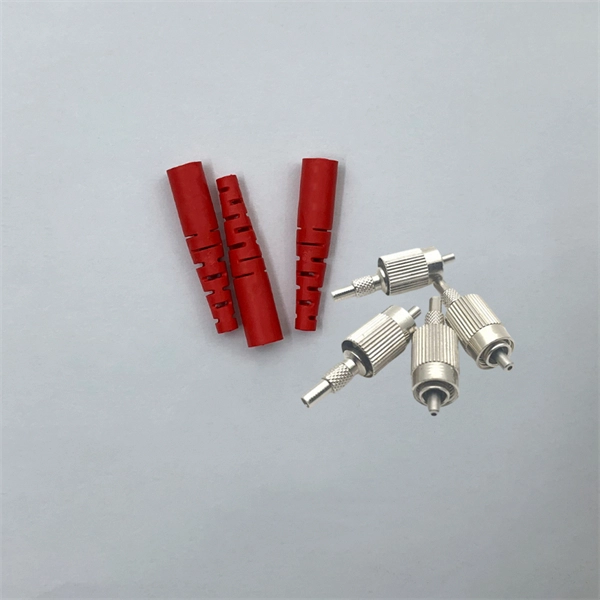

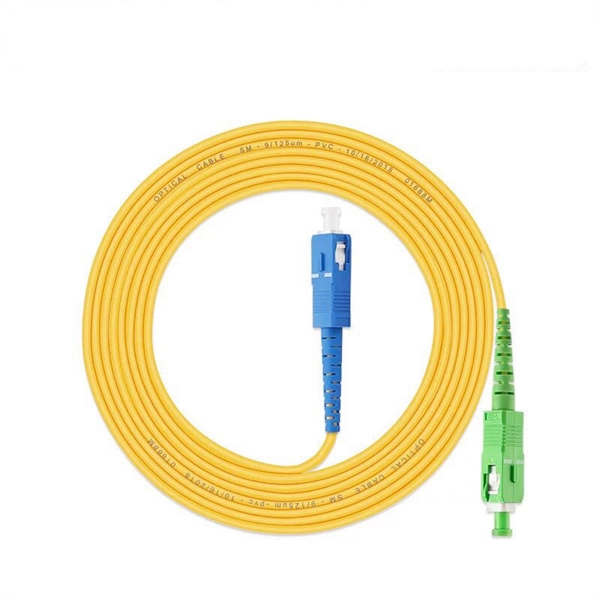

• Fiber Optic Connectors: Terminate fibers for reliable connections; common types include SC, LC, and ST .

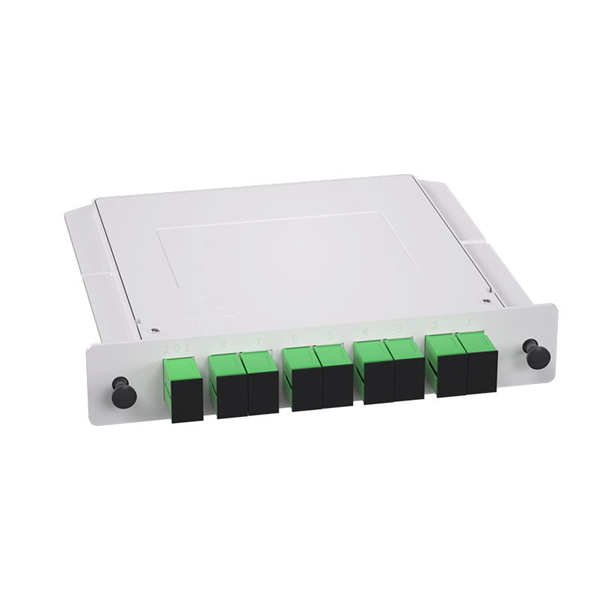

• Adapter Panels: Facilitate easy connection and disconnection of fibers .
• Bending Radius Clips: Prevent excessive bending that can cause signal loss .
• Cable Management Accessories: Cable ties and movable clips help organize fibers and maintain proper routing .

Step-by-Step Connection Process

1. Mount the Distribution Box: Secure the box to a wall, rack, or pole according to the manufacturer's instructions, ensuring it is level and accessible .
2. Introduce the Fiber Cable: Feed the main fiber optic cable through the designated inlet using a grommet or protective sleeve to prevent damage .
3. Prepare the Fiber: Strip the outer jacket carefully, clean the fibers, and, if necessary, cleave them for splicing or connector termination .
4. Splicing or Termination:
   • Fusion Splicing: Join fibers permanently using a fusion splicer for minimal signal loss.
   • Mechanical Splicing or Pre-terminated Pigtails: Use connectors or pigtails to connect fibers to the adapter panels .
5. Route and Secure Fibers: Place fibers in splice trays, use bending radius clips, and secure with cable ties to prevent tension or sharp bends .
6. Testing: Verify signal integrity using an optical power meter or OTDR to ensure proper connectivity and minimal loss .

Best Practices

• Avoid pulling, bending, or crushing fibers during installation, as they are fragile .
• Maintain sufficient slack in the fiber to allow for box access and future maintenance .
• Keep connectors and splices clean to prevent signal degradation .
• Plan for future expansion by leaving extra ports and space in the distribution box . By following these steps and using proper cable management, a fiber optic cable can be safely and efficiently connected to an optical distribution box, ensuring reliable network performance and ease of maintenance.
