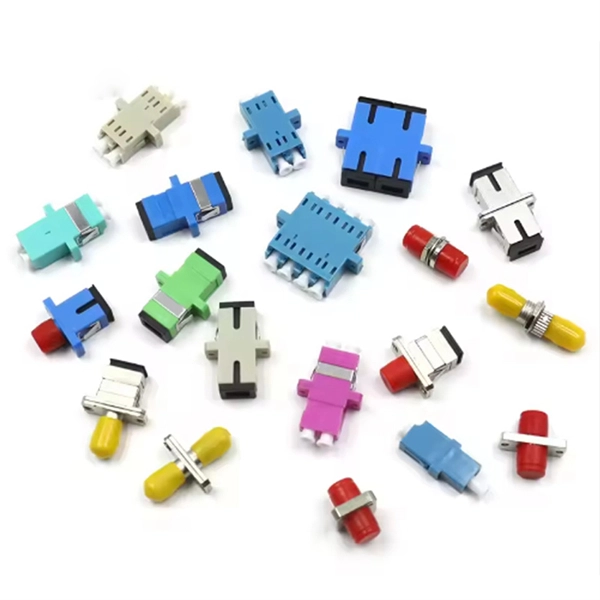

Effective fiber optic cable routing in patch panels requires structured pathways, proper bend radius adherence, and organized cable management to ensure network reliability and ease of maintenance.

Key Principles of Fiber Optic Cable Routing

1. Structured Cable Entry and Exit Cables should be fed into the patch panel from both sides or from top and bottom to minimize interference with access to ports and equipment. For larger enclosures (greater than 3U), cables should exit the vertical or horizontal cable manager as close as possible to the destination port to reduce unnecessary bending and congestion . 2. Bend Radius Compliance Fiber optic cables are sensitive to bending. Exceeding the minimum bend radius can cause physical damage or signal loss due to light leakage. Always route cables in a manner that respects the manufacturer's specified bend radius, typically maintaining smooth curves without sharp turns . 3. Cable Management and Organization Use vertical and horizontal cable managers to guide fibers neatly within the enclosure. Avoid wrapping cables around multiple spools or letting them hang loosely. Properly organized cables reduce the risk of accidental damage, simplify troubleshooting, and improve airflow within racks . 4. Length Control and Slack Management Patch cables should have controlled slack, typically no more than 50 cm to 500 mm beyond the required length. Excessive slack can create clutter, while cables that are too short may strain connectors or require extensions . 5. Labeling and Documentation Each cable should be clearly labeled at both ends with machine-printed labels showing the optical path name and code. Uniform labeling ensures quick identification during maintenance or upgrades and prevents misconnection . 6. Routing Path Guidelines

• Route cables horizontally below the optical distribution frame (ODF) and vertically up to the corresponding terminal.
• Avoid multiple ascents or descents within the frame to prevent tangling.
• Feed cables from the side closest to the destination port to minimize interference and maintain neatness . 7. Environmental Considerations For outdoor or wall-mounted patch panels, ensure cables are protected from environmental factors such as moisture, dust, and temperature fluctuations. Use enclosures with appropriate NEMA ratings for outdoor installations .

Benefits of Proper Routing

• Reduced Signal Loss: Maintaining proper bend radius and avoiding tight loops prevents attenuation.
• Ease of Maintenance: Organized cables allow technicians to access ports without disturbing other connections.
• Scalability: Structured routing supports future network expansion without major rework.
• Reliability: Minimizes the risk of accidental fiber breakage or connector damage . By following these structured routing methods, fiber optic patch panels can maintain high performance, reduce downtime, and simplify network management.
