Optical module switch interfacing enables high-speed data transmission by converting electrical signals to optical signals and connecting them to network switches via standardized interfaces.

Overview of Optical Modules

An optical module is a hot-pluggable transceiver that converts electrical signals from a switch into optical signals for fiber-optic transmission, and vice versa, operating at the physical layer of the OSI model . Modules typically have an electrical interface connecting to the switch and an optical interface connecting to fiber cables . Common module types include:

• SFP (Small Form-factor Pluggable): Compact, supports hot-swap, ideal for high-density switch ports .
• GBIC (Gigabit Interface Converter): Larger than SFP, supports hot-swap, mostly used in legacy systems .
• XFP and XENPAK: Designed for 10-Gigabit Ethernet applications .

Optical Interfaces

Optical modules connect to fiber using standardized interfaces, which determine connector type and signal quality:

• LC (Lucent Connector): Small form factor, widely used in modern switches .

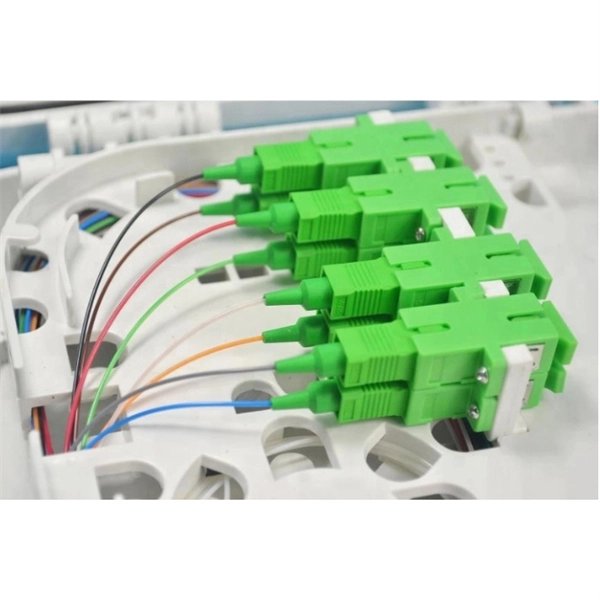

• SC (Subscriber Connector): Larger, common in older networks .
• FC (Ferrule Connector): Threaded, used in high-reliability applications .

Interfacing Considerations

When interfacing optical modules with switches, key factors include:

• Compatibility: Ensure the module type matches the switch port and supports the required data rate .
• Hot-Swap Capability: Most modern modules allow insertion/removal without powering down the switch, minimizing downtime .
• Distance and Wavelength: Modules are designed for specific transmission distances and wavelengths; selecting the correct type ensures signal integrity .
• Electrical Standards: Modules follow standards like the Common Electrical Interface (CEI) for signal retiming and interoperability .

Optical Switching Technologies

In advanced networks, optical switching can route signals between modules without electrical conversion, using:

• Space Division Switching: Routes signals through a matrix configuration .
• Wavelength Division Switching: Uses wavelength interchangers for DWDM networks .
• Time Division Switching: Employs Optical Time Slot Interchangers for OTDM systems .

Practical Integration Tips

• Verify switch firmware supports the chosen optical module.
• Use proper fiber type (single-mode or multi-mode) matching the module specifications.
• Monitor module performance using key counters like optical power, temperature, and error rates .
• Consider MEMS-based or optomechanical switches for high-density or frequently switched environments . By carefully selecting compatible optical modules and interfaces, and understanding the switching technology, network engineers can achieve high-speed, reliable, and scalable optical connections in modern data centers and enterprise networks.
