Attenuation in a fiber optic collimator can be adjusted using variable optical attenuators that control the coupling efficiency of the collimated beam.

Understanding the Setup

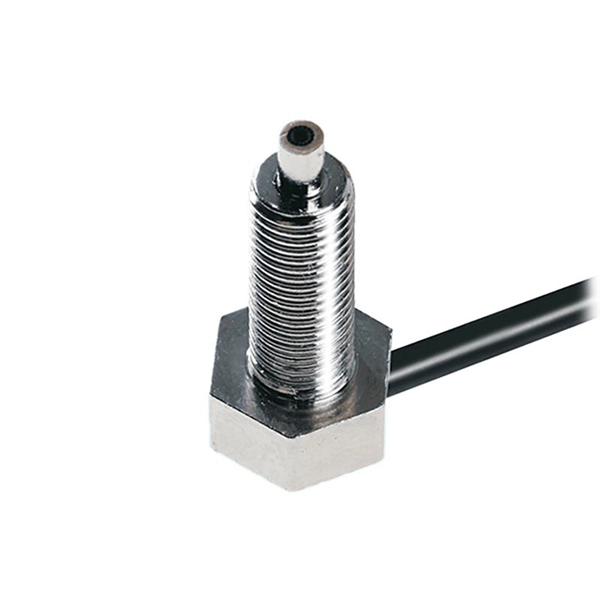

A fiber optic collimator consists of a collimating lens that converts the diverging light from a fiber into a parallel beam, and optionally a focusing lens to couple light back into another fiber . The collimated beam can then pass through a variable optical attenuator (VOA), which allows precise control of the optical power transmitted.

Methods of Adjusting Attenuation

1. Manual Adjustment with a Blocking Device In polarization-maintaining VOAs, a blocking element is inserted into the collimated beam path. By turning a thumbscrew or adjustment wheel, the blocking device moves up or down, partially obstructing the beam. This reduces the coupling efficiency into the output fiber, effectively controlling the attenuation from a few dB up to 50 dB .

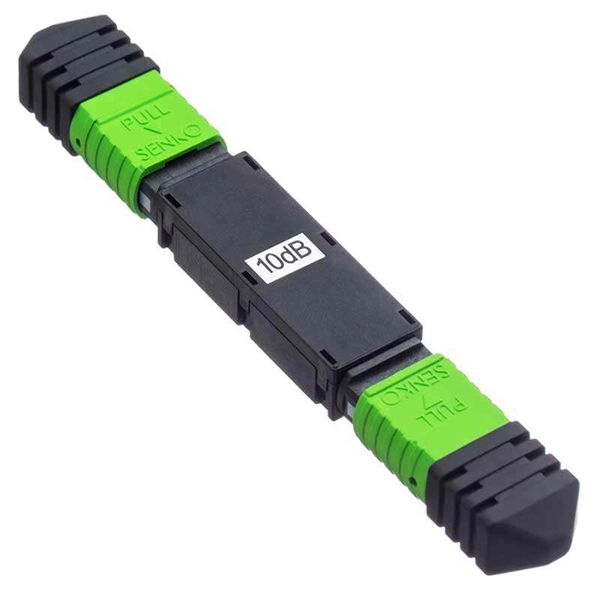

2. Stepwise or Fixed Attenuators Fixed attenuators provide a predetermined insertion loss (e.g., 1 dB, 5 dB, 10 dB). Multiple fixed attenuators can be combined to achieve the desired total attenuation. Some systems allow stepwise adjustment by exchanging absorber elements or using discrete settings .
3. Electronic or Motorized VOAs Some VOAs allow electronic control of the blocking device, enabling remote or automated adjustment of attenuation. This is useful in dynamic systems where optical power needs to be balanced or modulated in real time .

Practical Considerations

• Alignment: Proper collimator alignment is critical. Misalignment can introduce additional loss or beam distortion, affecting the accuracy of attenuation .
• Beam Spot Size: For single-mode fibers, the Gaussian beam profile is maintained, but the spot size at the output depends on the collimator focal length and distance to the target .
• Connector Cleanliness: Ensure all fiber connectors are clean and free of dust or scratches, as contamination can alter attenuation and reduce coupling efficiency .
• Environment: Use anti-static mats and maintain a dust-free workspace to prevent damage to sensitive optical components .

Summary

To adjust attenuation in a fiber optic collimator, the most common approach is to use a variable optical attenuator that partially blocks the collimated beam, either manually or electronically. Proper collimator alignment, clean connectors, and careful handling are essential to achieve precise and repeatable attenuation levels. Combining fixed and variable attenuators can provide a wide range of control for both laboratory and field applications .
